IEC 61008 Sontuoec 4 Pole RCCB Circuit Breaker

Product Categories

WENZHOU SANTUO ELECTRICAL CO.,LTD.

Contact Now

IEC 61008 Sontuoec 4 Pole RCCB Circuit Breaker

Name: IEC 61008 Sontuoec 4 Pole RCCB Circuit Breaker
Brand: SONTUOEC, WZSTEC
Price: 1 USD

Brand Name : SONTUOEC, WZSTEC

Model Number : ST360

Certification : CE, SAA, Semko ,ISO9001

Place of Origin : China

MOQ : 2000PCS

Price : Negotiable

Supply Ability : 5000PCS/DAY

Delivery Time : 15DAYS

Packaging Details : 100pcs/ctns

Standard : IEC 61008

In : 16,25,32,40,,63A

Ue : 230/400V

Pole : 2p 4p

Credential : CE

Color : White

Contact Now

SONTUOEC brand 2pole ,4 pole Good quality F360 RCCB Price 30mA 40 Amp ELCB Breaker RCD 30mA 100mA 300mA

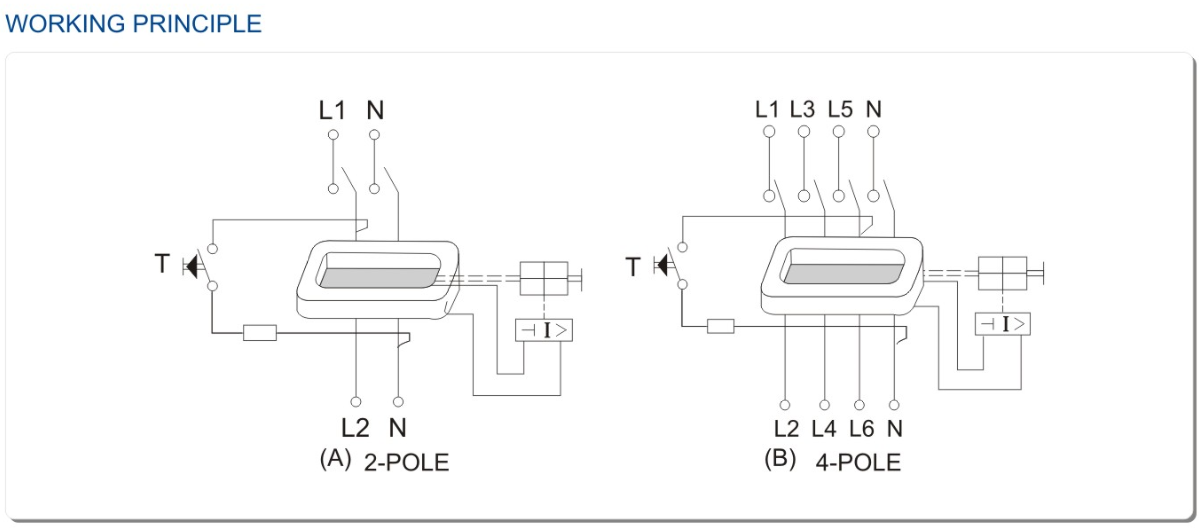

Residual Current Circuit Breaker (F360 RCCB) provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the electric current and provide the protection of the fire caused by the electrical circuit fault.

1.In compliance with IEC/EN60898-1.

2.Bilateral busbar wiring capalilities to adapt tothe wider use of permises.

3.Leading in electronic driven,more cost-effectively.

4.Maximum connecting ability of 25mm²,wiring torque 3Nm,applicable to a variety of installing equipments,wiring stronger.

5.Protection class:IP20

Technical Data

	Standard		IEC/EN 61008-1
Electrical features	Rated current in	A	16 25 40 63
	Poles		2P 4P
	Rated voltage Ue	V	230/400
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60Hz
	Rated residual making and breaking capacity Im	A	0.03 0.1 0.3
	Rated impulse withstand voltage (1.2/50)Uipm	V	6000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2.5
	Pollution degree		2
	Break time under In	S	≤0.1
Mechanical features	Electrical life		4000
	Machanical life		8000
	Fault current indicator		Yes
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/ U-type busbar/ Pin-type busbar
	Terminal size top/bottom for cable	mm² AWG	25 18-3
	Terminal size top/bottom for busbar	mm² AWG	25 18-3
	Tightening torque	N*m In-lbs.	2.5 22
	Mounting		OnDIN rail FN 60715(35mm) by means of fast clip device
	Connection		From top

IEC 61008 Sontuoec 4 Pole RCCB Circuit Breaker

Our services have competitively price,we can provide after sale service,our product quality are very good,it has a long life<br>
