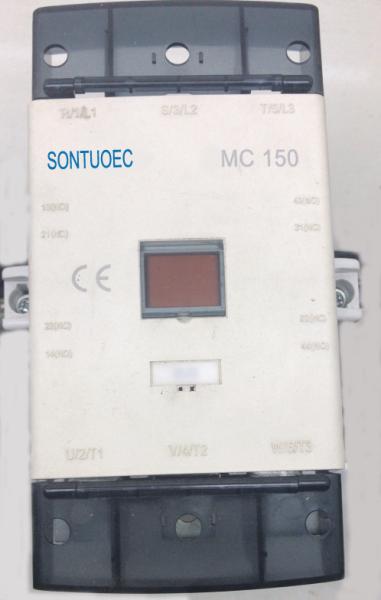

SONTUOEC brand Contactor 220v Ac Contactor STMC-150,STMC-125 STMC-100 220V/380V Ac Magnetic Electric Contactor 85%Silver Texture high quality
GENERAL
STMC Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 150A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.

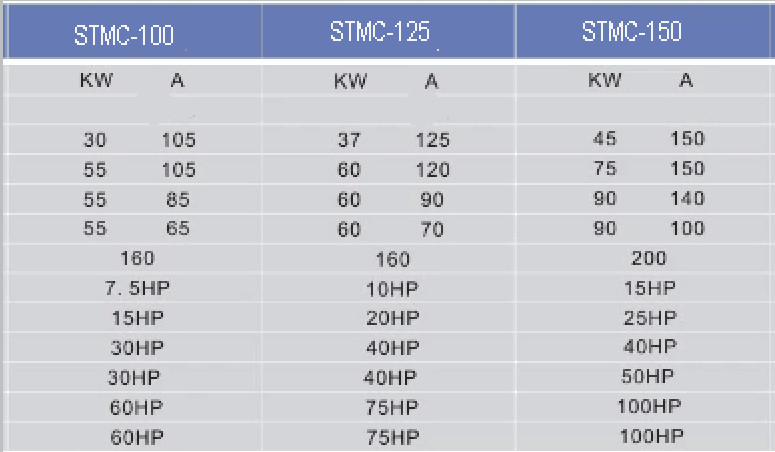

| Specification |
| Type | AC | MC-9
MD-9 | MC-12
MD-12 | MC-18
MD-18 | MC-22
MD-22 | MC-32
MD-32 |
| |
1AC capability | | 20A | 20A | 25A | 32A | 50A |
Rated heat current | 220~240V | 2.5kW 11A | 3.5kW13A | 4.5kW 18A | 5.5kW 22A | 7.5kW 32A |
| 380~440V | 4kW 9A | 5.5kW 12A | 7.5kW 18A | 11kW 22A | 15kW 32A |
| 500~550V | 4kW 7A | 7.5kW 12A | 7.5kW 13A | 15kW 22A | 18.5kW 28A |
| 690V | 4kW 5A | 7.5kW 9A | 7.5kW 9A | 15kW 18A | 18.5kW 20A |
Conventional thermal current | 20A | 25A | 30A | 32A | 45A |
AC motor |
Single
phase | 115V | 0.5HP | 0.5HP | 1HP | 2HP | 2HP |
| 230V | 1HP | 2HP | 3HP | 3HP | 5HP |
Three
phase | 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP |
| 230V | 3HP | 3HP | 5HP | 7.5HP | 10HP |
| 460V | 2HP | 7.5HP | 10HP | 10HP | 20HP |
| 575V | 5HP | 10HP | 15HP | 15HP | 20HP |
| Type | AC | MC-40
MD-40 | MC-50
MD-50 | MC-65
MD-65 | MC-75
MD-75 | MC-85
MD-85 |
| |
1AC capability | 60A | 80A | 100A | 110A | 135A |
Rated heat current | 220~240V | 2.5kW 11A | 15kW 55A | 18.5kW 65A | 22kW 75A | 25kW 85A |
| 380~440V | 18.5kW 40A | 22kW 50A | 30kW 65A | 37kW 75A | 45kW 85A |
| 500~550V | 22kW 32A | 30kW 43A | 37kW 60A | 45kW 64A | 45kW 75A |
| 690V | 22kW 25A | 30kW 33A | 37kW 47A | 45kW 47A | 45kW 52a |
Conventional thermal current | 50A | 70A | 80A | 90A | 100A |
AC motor |
Single
phase | 115V | 3HP | 3HP | 5HP | 5HP | 7.5HP |
| 230V | 5HP | 7.5HP | 10HP | 15HP | 15HP |
Three
phase | 200V | 10HP | 10HP | 15HP | 20HP | 25HP |
| 230V | 10HP | 15HP | 20HP | 25HP | 30HP |
| 460V | 25HP | 30HP | 40HP | 50HP | 50HP |
| 575V | 25HP | 30HP | 40HP | 50HP | 50HP |
FAQ:
Q:What’s the payment terms?
A:We accept T.T, Paypal, LC at sight.
Q:What’s the delivery time?
A:Usually it will take about 15-25days for production.
Q:What’s the standard of package?
A:Export standard package or special package according to custome
Q:What kind of product quality your factory offer?
A:We offer most competitive prices with best quality.
Q:Which market do you already sell?
A:We already ship to North America, Europe, Middle East, Southen East Asia,Africa...
