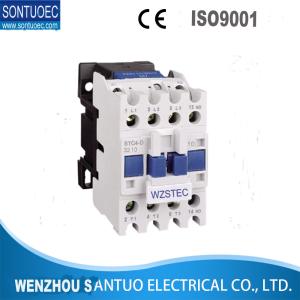

ST2 Industrial Electrial AC Contactor For Lighting Circuits Safety Performance

Name: ST2 Industrial Electrial AC Contactor For Lighting Circuits Safety Performance
Brand: SONTUOEC, WZSTEC
Price: 1 USD

Brand Name : SONTUOEC, WZSTEC

Model Number : ST1

Certification : CE

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000pcs/day

Packaging Details : 50PCS/CTN

Type : AC

Standard : IEC 60947-1

ln : 9,12,18,25,32,40,50,65,80,95A

Frequency : 50Hz,60Hz,50/60Hz

Credential : CE

Texture : PA66

Contact Now

ST2 Industrial Electrial AC Contactor For Lighting Circuits Safety Performance

GENERAL

ST2 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.

Specifications

Type		ST2-09	ST2-12	ST2-18	ST2-25	ST2-32	ST2-40	ST2-50	ST2-65	ST2-80	ST2-95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

WENZHOU SANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.
